Open Firewall on Google Cloud ​

Step 1 - Locate firewall settings ​

VPC network ​

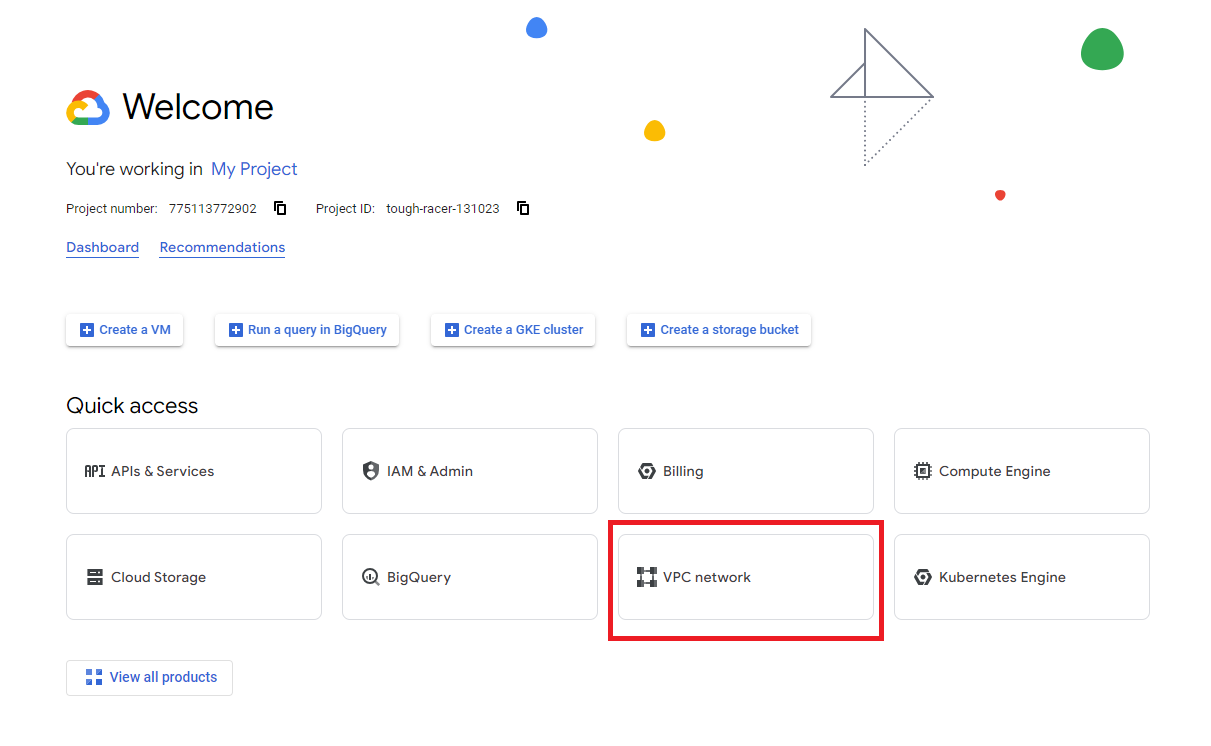

Login to google cloud, select your project, choose VPC Network from quick access. If it not appear in Quick access then you may need to find it in View all products

open-firewall-on-google-cloud step 1

Firewall ​

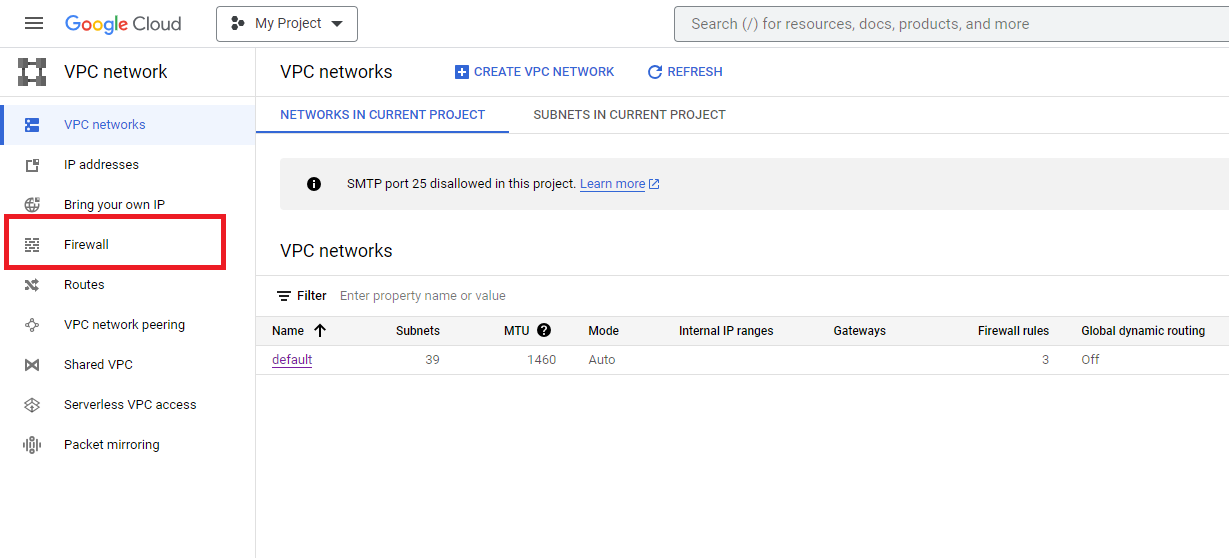

From VPC network choose Firewall

open-firewall-on-google-cloud step 2

Step 2 - Create firewall rule ​

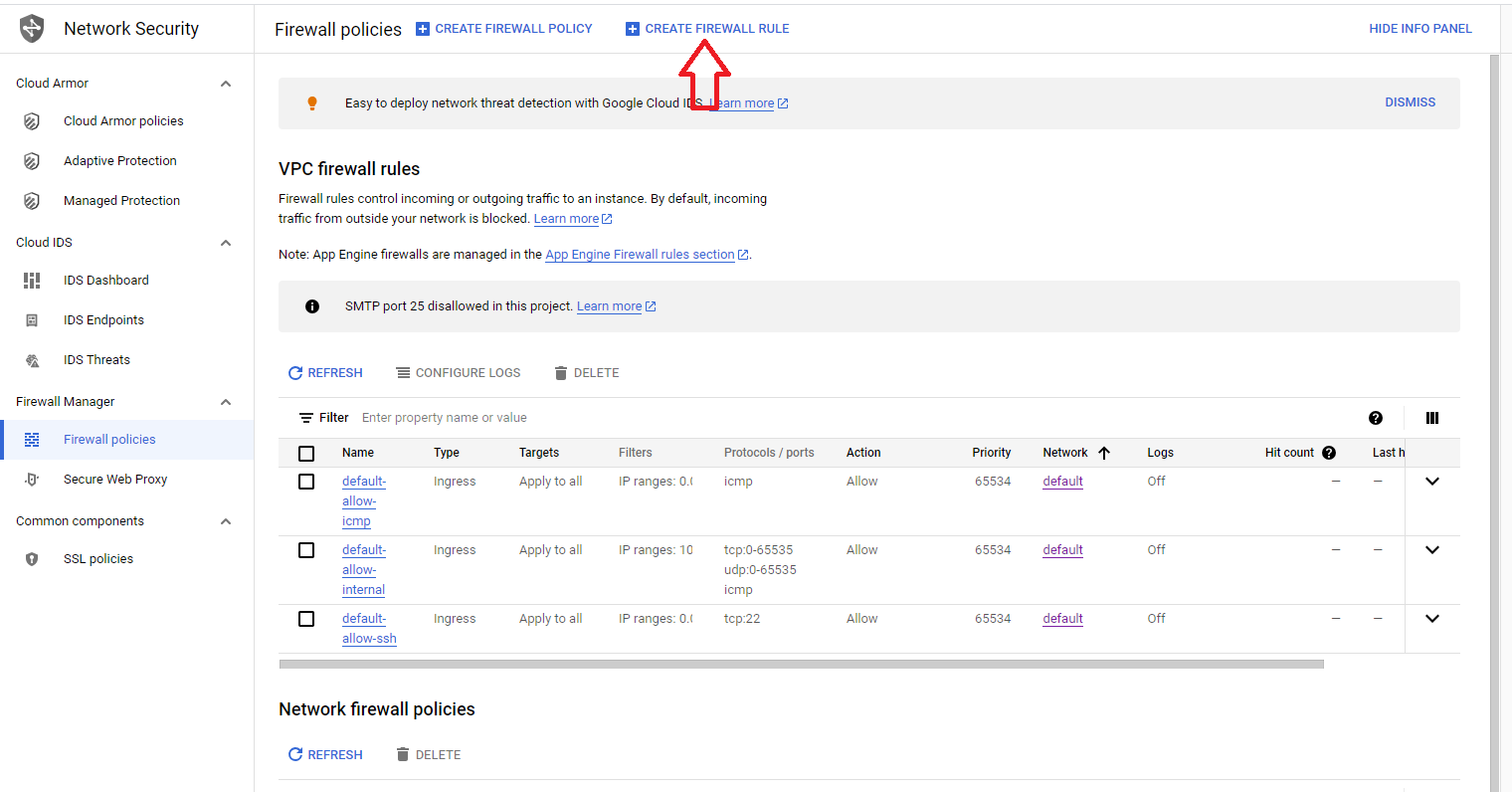

Choose Create Firewall Rule

open-firewall-on-google-cloud step 3

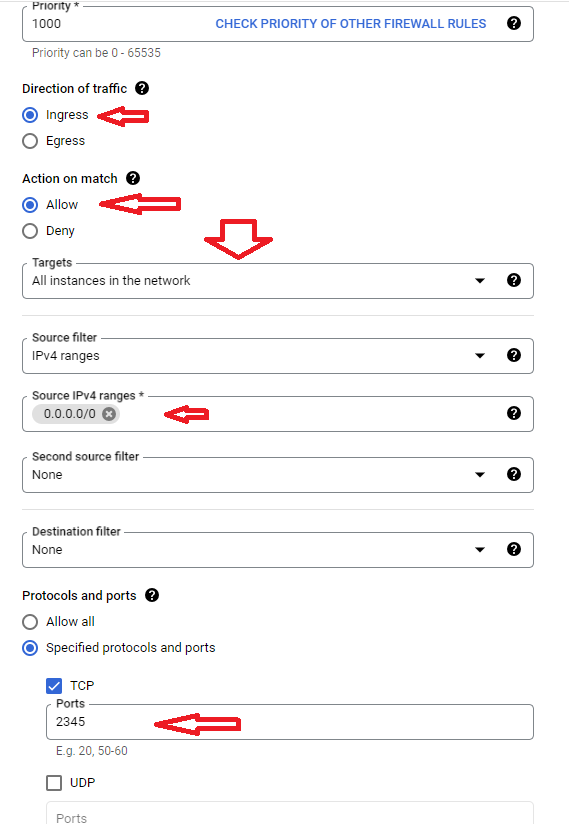

Fill the firewall settings

  • Direction of traffic: Ingress
  • Action on match: Allow
  • Targets: All instances
  • Source IP: 0.0.0.0/0
  • Port: the port you want to open eg: 2345

open-firewall-on-google-cloud step 4

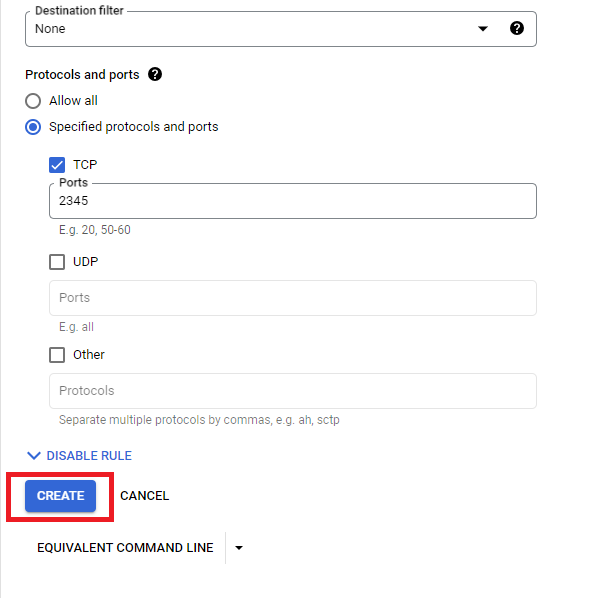

Click Create to create the rule

open-firewall-on-google-cloud step 5
